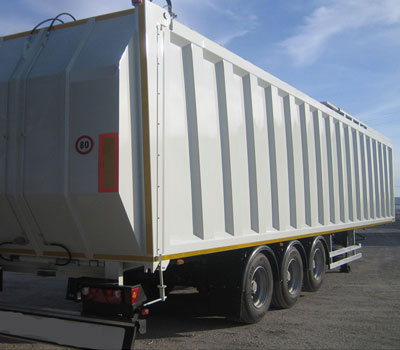

SELF-COMPACTING TRAILER

SECON AFI designs self-compacting semi-trailers of 72m3 with a compactation ratio of 1:5.

This high compactation ratio is achieved by a "step by step" compactation during the loading.

This same compacting device achieves a complete horizontal unloading in 4 minutes.

All operations can be directed by a remote control.

Optional : Silent pack Hatz motor engine.

TECHNICAL DATA

• Dimensions: Length 13.500 mm x Height (empty) 4.000 mm
• Capacity of the container: 72 m3 or 92 m3 (depending from the model.)
• Chassis in special steel with different thickness ( HB 300 wear)( Domex 390)
• Unloading door hydraulically operated
• Hydraulic blockage
• Protection with anti-roll central bar
• Lateral Stabiliser Skates
• Automatic compaction cycle: Reception/minute: 8-16 m3/min
• Double acting Compaction Cylinder
• Constant effort force of the cycle : 40 Tm. + 55 Tm. Max
• Work pressure: 200 bar (max. gauge : 240 bar)
• Min. unloading time: 4 min 30 sec
• Ongoing cycle with step by step progress
• Auxiliary Diesel engine with 2 air-refrigerated cylinders of 40HP. (HATZ)
• Preliminary power 35 HP / 1800 RPM
• Double hydraulic gear pump (high and low)
• Oil tank of 150 liters
• Hydraulic installation Cetop
• Electrical Installation 12 V cc with smart card
• Operation: automatic or manual with remote control
• Load opening hydraulically operated
• Dimensions of the loading pit: 3300 x 2300 mm
• Capacity of waste reduction: 1:6
• Loads and unloads all type of waste (incluiding glass)
• Weight of the trailer: Approx. 11.000 Kg
