Waste Management Equipment

BALERS AND COMPACTORS

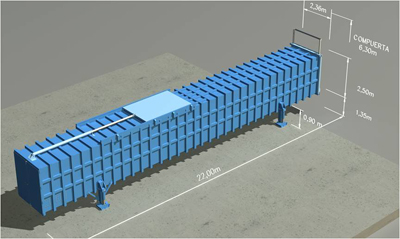

COMPACTOR: MEGAPRESS MODEL

• Dimensions of the press
• Loading hopper: 7 m²
• Volume compaction compartment: 69 m³
• Total length compaction compartment: 11 m
• Max. external dimensions: 23 m x 2,4 m x 4 m
• Dimensions of the bale
• Width bale: 2,3 m
• Height bale: 2,5 m
• Volume bale: 69 m³
• Weight bale: 29-30 Tn
• Surface finishing
• Sandblast: 2,5%
• 2 primer epoxy coatings: 80 micron
• 2 polyurethane enamel coatings: 60 micron
• Specifications
• Max. force cylinder: 160 Tn
• Unit working pressure: 3 Kg/cm²
• Working pressure: 200 Bar
• Compaction reduction: 1:6
• Transfer capacity: 60 Tn/hour
• Electric motors: 2 Motors 37 Kw each
• Electric motor: 1 Motor 11 Kw
• (Stabilizers, cylinder and guillotine)

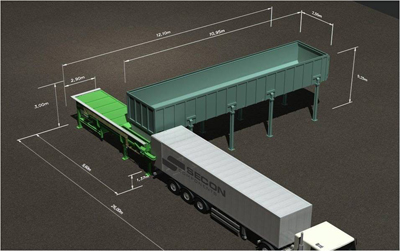

COMPACTOR MODEL: BIOPRESS

• Compactor capacity
• Theoretical capacity: 740 m³/hour
• Net capacity: 600 m³/hour
• RDF Density: 200 Kg/m³
• Max. theorical: 120.000 Kg/hour
• Max. theorical: 120 Tm/hour
• Max. theorical: 5 loads
• Taking off manoeuvring time: 4 loads of 24 tons
• Total dimensions
• Length: 9.600 mm
• Width: 2.900 mm
• Height: 2.680 mm
• Weight compaction compartment: 19 Tm
• Internal width: 2.000 mm
• Internal height: 900 mm
• Length: 3.000 mm
• Penetration: 1.200 mm
• Volume: 7 m³
• Cycle time: 38 sec.
• Compaction force: 62,5 Tm
• Final force: 70 Tm
• Motor and tank
• Electric motors: 22 Kw
• Oil tank: 500 l.

HOPPER WITH MOVING FLOOR

• Volume: 100 m³
• Dimensions: 10 m x 2,5 m x 3 m
