LOADING AND UNLOADING SYSTEMS FOR ISO CONTAINERS
UNLOADING MANUAL SYSTEM (SDM)
With Pneumatic Height AdjustmentComposed of:

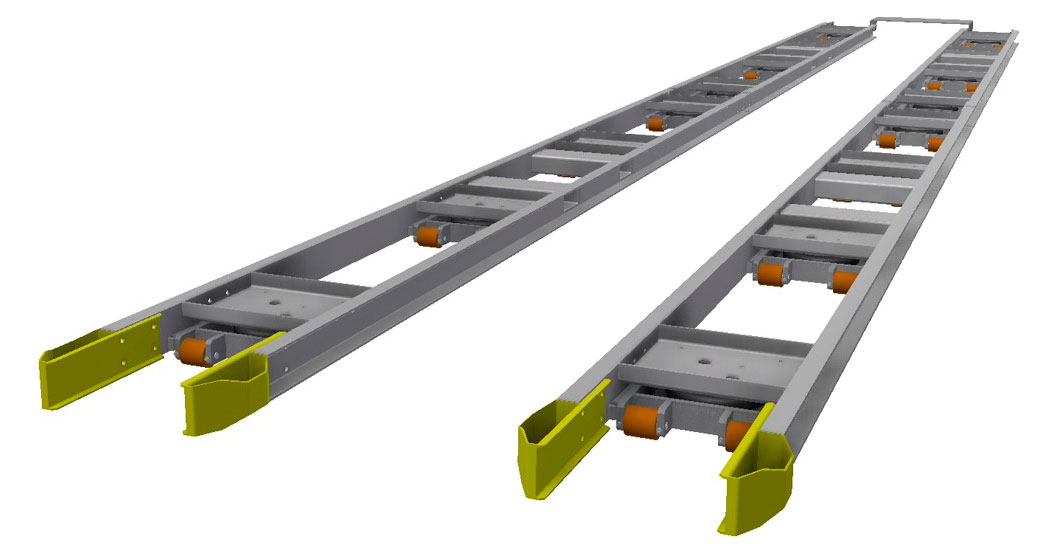

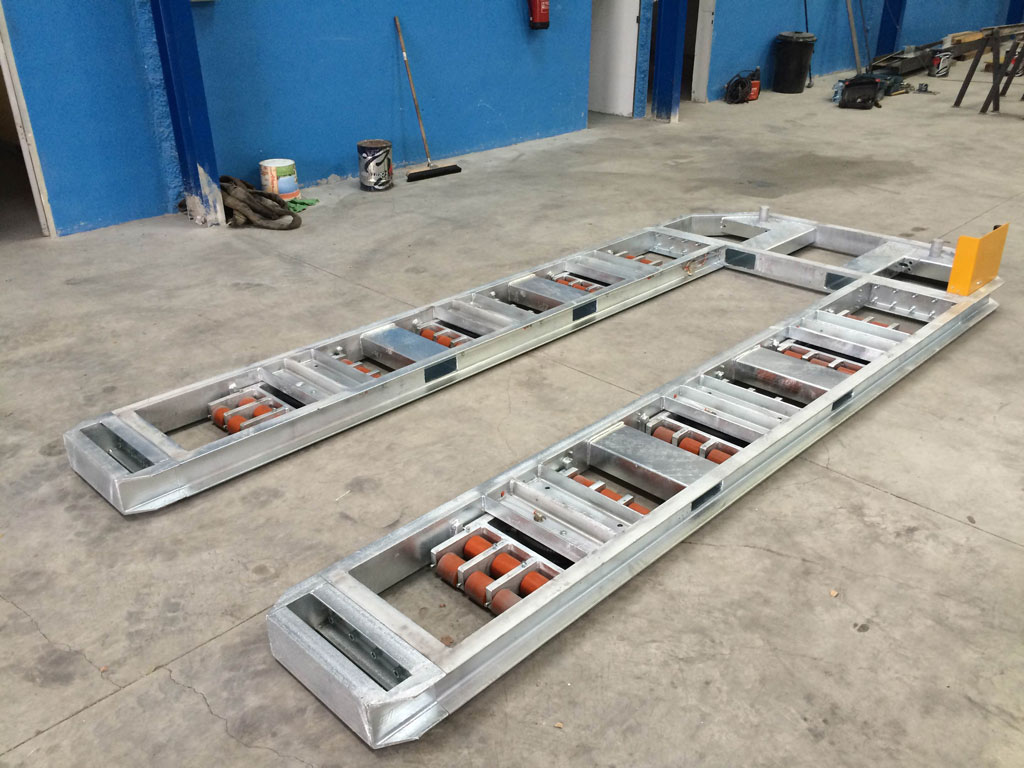

- a system with 2 forks
- a dismountable platform with height adjustment

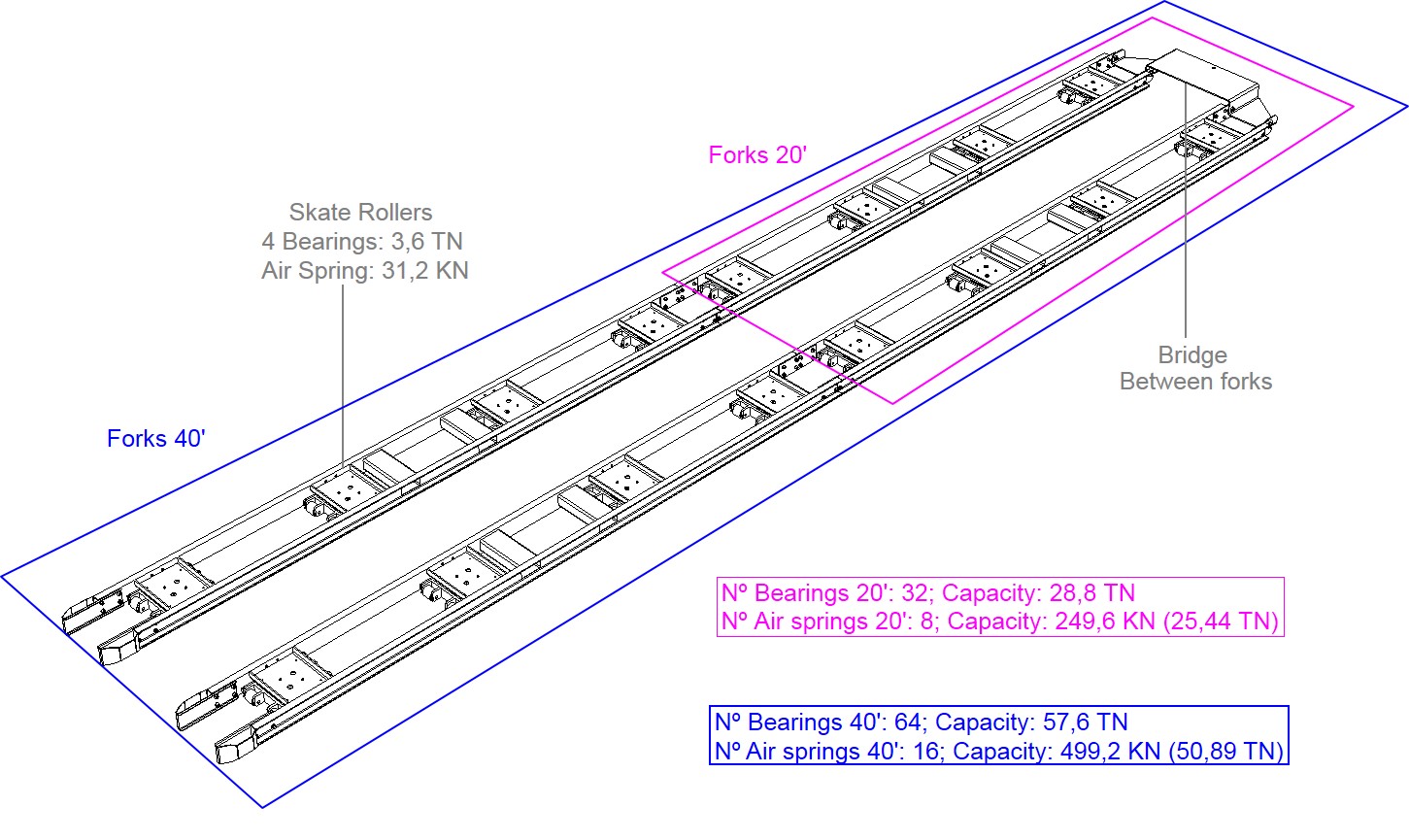

System used for the unloading of 20’ and 40’ containers, acting with short forks (20’) or to be extended with another set of forks (40’).

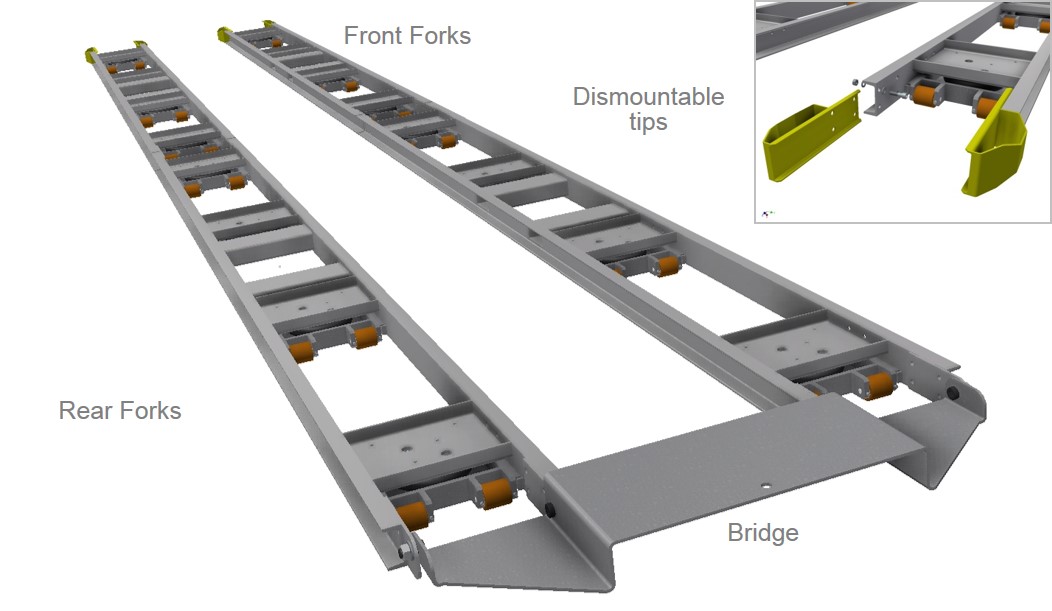

Pictures and descriptionThe system can be dismounted in several parts to make transport in a 40’ Container easier

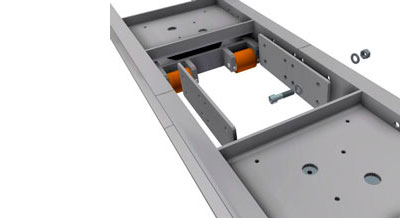

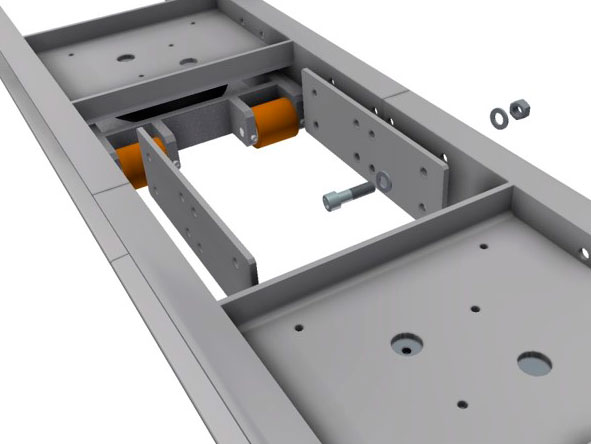

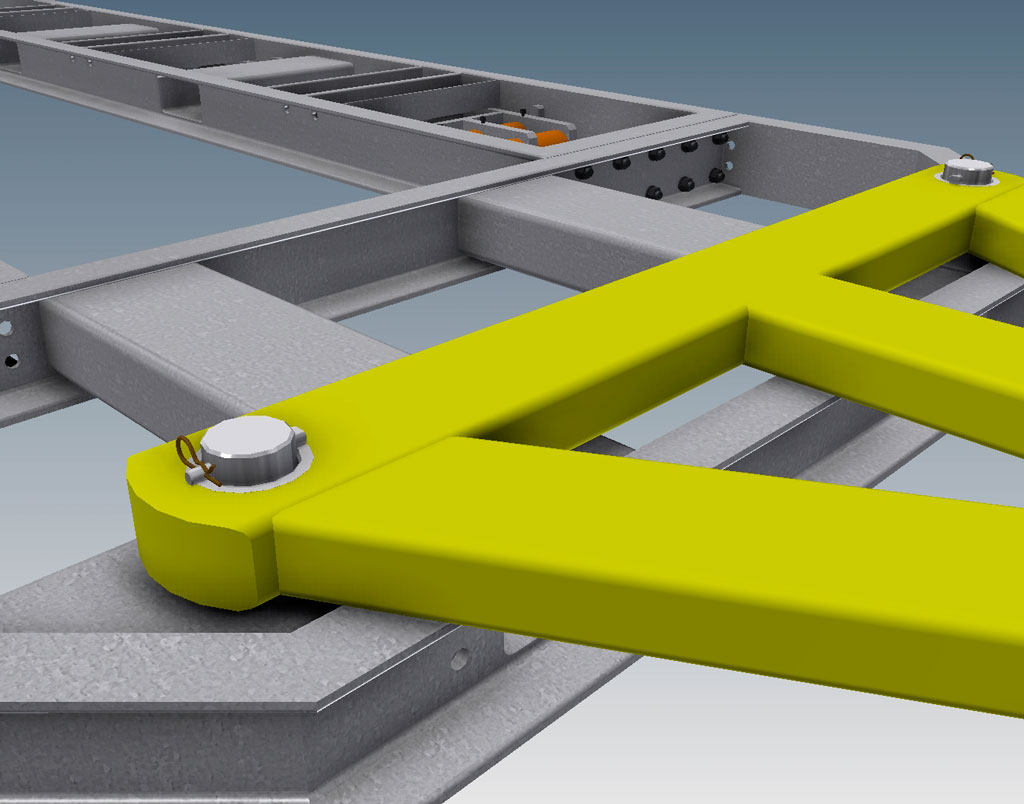

Joining of the Forks by means of 8 Screws and 2 inner plates

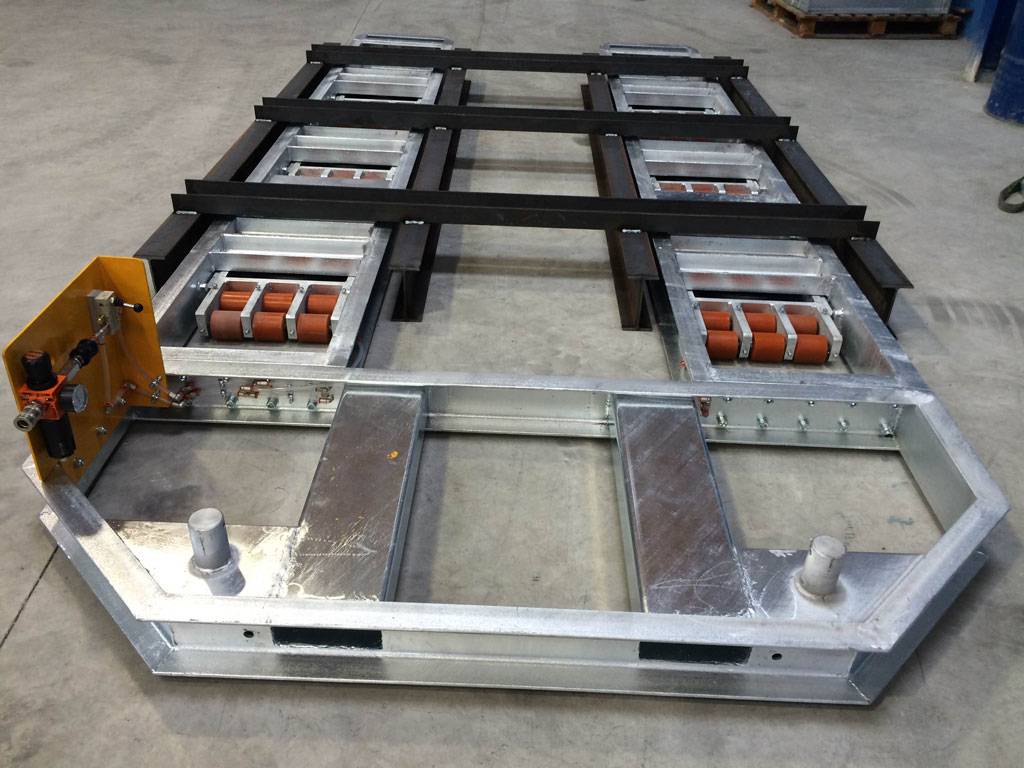

Dismountable platform
with Manual Height AdjustmentDescription and instructions for use
- 20' and 40‘ Containers can be unloaded when placing UMS into the platform which can be pulled out with a forklift or winch.

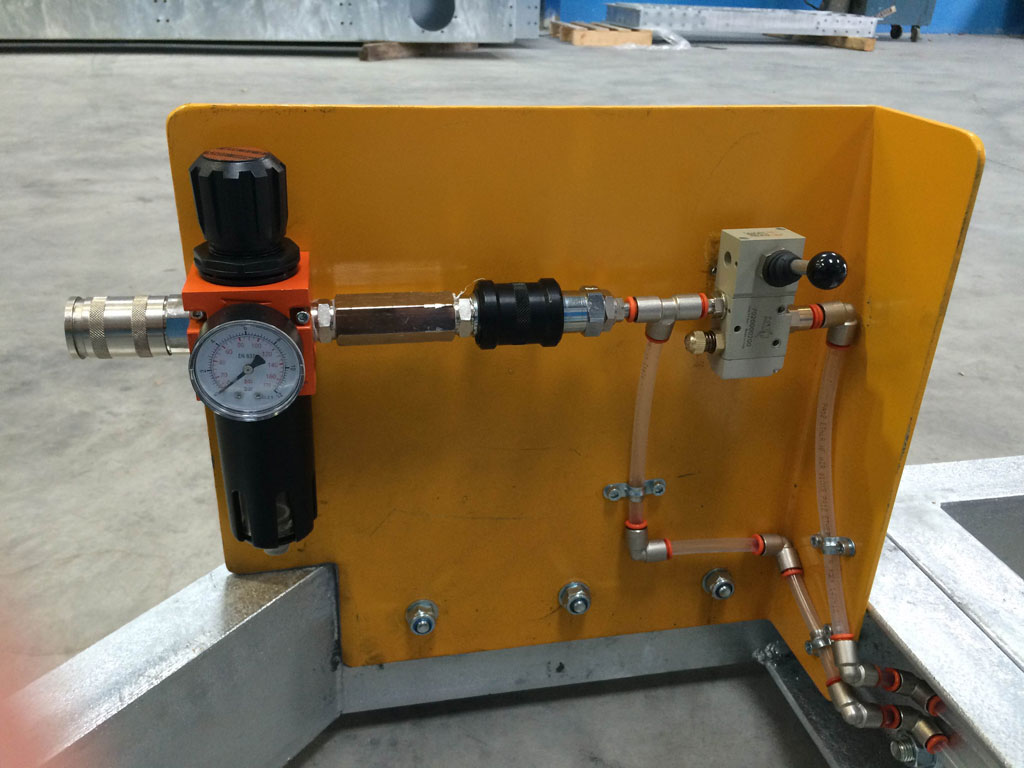

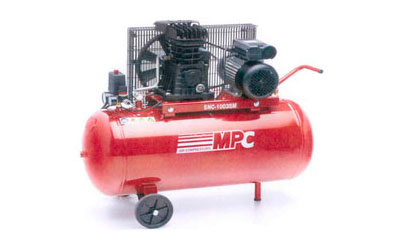

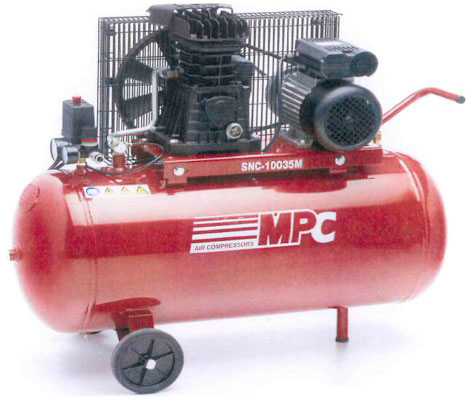

- When the UMS is located under the subframe, connect it to the gas compressor, inflate the pneumatic air springs to lift the subframe with the load on top of it.
- At that point the UMS can be pulled out until the complete load is removed.

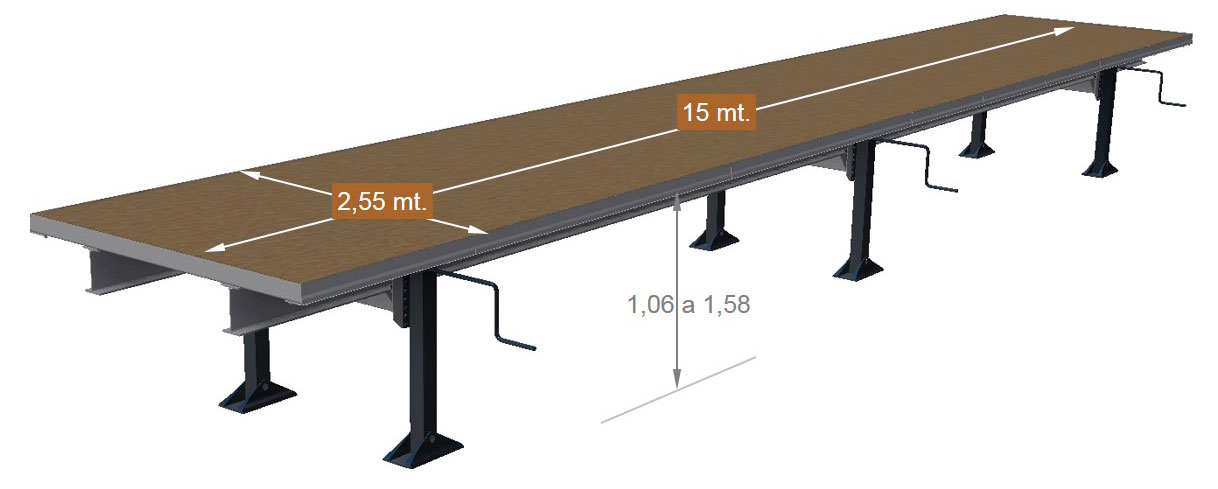

- The platform is equipped with adjustable landing legs in height to be at the same level as the vehícule.
